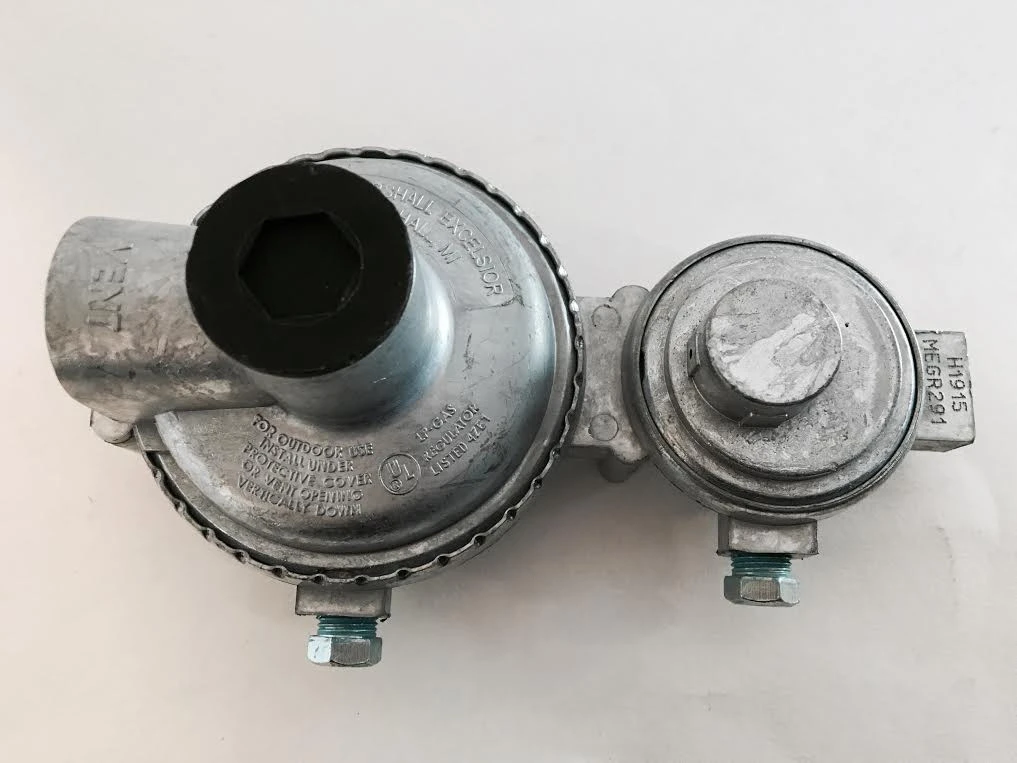

Compact 2-Stage Propane Regulator

Sold Individually



This two stage regulator is approved for use in portable applications, indoor and outdoor cooking appliances utilizing low pressure.

The regulator features all-zinc body construction, high and low 1/8″ NPT pressure tap ports, an integral drip lip vent and optional 90° vent location.

This series two-stage regulator  meets RVIA, UL and NFPA test requirements.



Max. inlet pressure : 250 PSI

Inlet connection: 1/4″ FNPT

Outlet connection: 3/8″ FNPT

Vent 90° vent

BTU/hr 175,000



Exterior finish: raw zinc

Diaphragm: fabric reinforced molded with O-ring bonnet/body seal.

Diaphragm Type: internal relief – spring loaded

Bonnet/body material: die-cast zinc

Listing UP listed/UL 144



Mounting holes 3 1/2″ on center

Pressure taps: 1/8″ FNPT plugged



Please check your owner’s manual to make sure this part will work with your grill or appliance
